    Integrated high-tech enterprise

    Focusing on suppliers of automatic industrial equipment and system solutions

    Hotline:18902853808
    Product

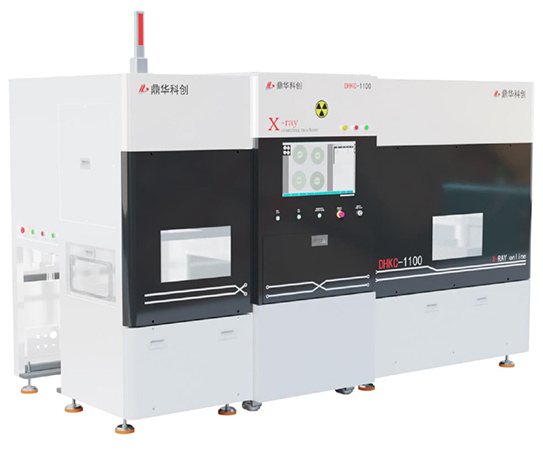

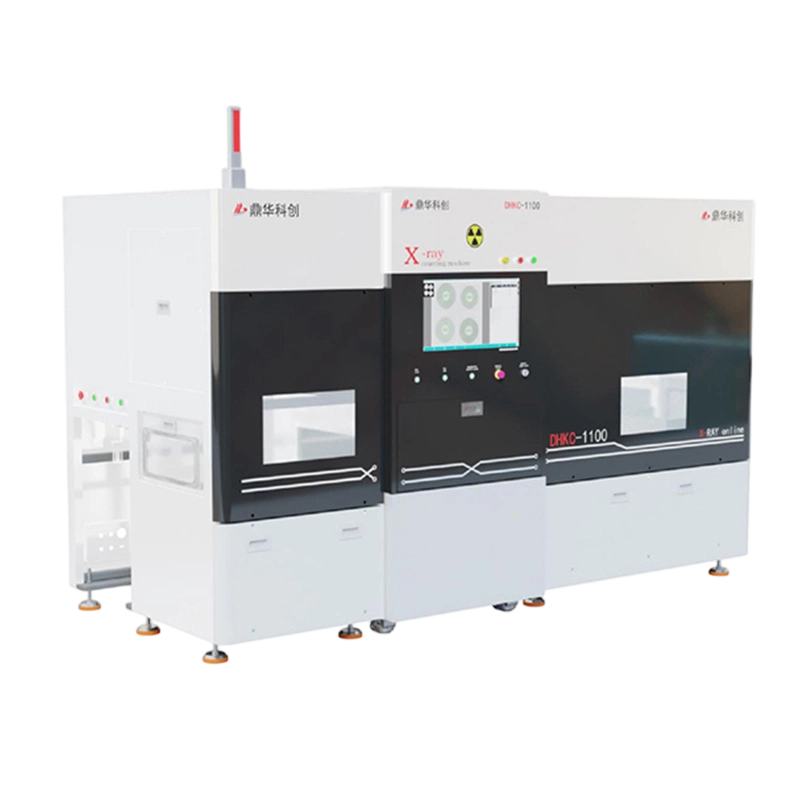

    Dinghua Intelligent Material Counting Machine DHKC-1100

    Dinghua Intelligent Material Counting Machine DHKC-1100

    Hotline

    0755-29091833

    Details

    Contact Us
    Shenzhen Dinghua Kechuang Automation Co., Ltd
    Contact: Mr. Zhang
    Email:915510982@qq.com
    Mobile phone:18902853808
    Telephone:0755-29091833/29091822/29091633
    Fax:0755-29091622
    Address: 4th Floor, Building B, Building 6, Shengzuo Zhi Technology Industrial Park, North of Xinyu Road, Shajing Street, Bao'an District, Shenzhen
    Recommended Products
    Industry News
    1、 Product images



    2、 Introduction to Intelligent Material Counting Machine

    1. Material counting speed: 12-15 seconds/disc counting accuracy: up to 99.99%;

    2. Product sorting, automatically removing NG products;

    3. Automatic label printing, automatic labeling, and label review inspection:

    4. Self developed AI intelligent material counting algorithm software;

    5. Reduce inventory time, eliminate unnecessary manpower, and assist other personnel in collecting or changing lines to shorten downtime during line changes;

    6. The smart material counting machine adopts digital data, which can print barcode stickers or directly upload them to the database. However, traditional counting instruments require one for each operator, which takes up a lot of space. The counting results are still manually filled in, which may result in errors or omissions;

    7. Smart material counting machines can significantly improve the situation of material shortage, loss, leakage, and shortage, digitize material storage management, reduce material inventory costs, and improve material inventory accuracy;

    8. Can dock with AGV carts, automatically load and unload materials, without the need for manual processing;

    9. Integrate with MES/ERP/WMS and other system data, exchange real-time data, and upload and update material information in a timely manner.

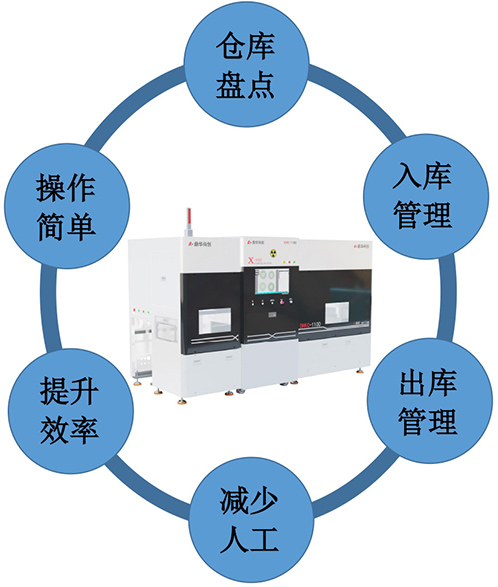

    3、 Application Fields



    4、 Technical parameters and specifications

    X-ray tube parameters
    Tube type Reflective sealed micro focal point emitter
    Tube voltage range 30-80KV (optional)
    Tube current range 200-700μA
    Maximum output power 56W
    Micro focus size 139um
    Flat panel detector parameters
    Tablet type Amorphous silicon flat panel detector
    Pixel matrix 3072x3072
    Field of View 427x427mm
    resolution 3.6Lp/mm
    Image frame rate (1x1) 1fps
    AD conversion bits 16bits
    Equipment performance parameters
    Tray size 7-15 Tape Reel
    Tray height 6-80mm/60-80mm (manual feeding)
    Minimum Device 01005
    system integration MES/ERP/WMS, etc
    input power 220V10A 50-60HZ
    control system Industrial computer WIN10 64 bit
    Overall dimensions 830 X 1400 X 1950m
    Net weight of equipment About 2200KG
    interface system Integrate with MES/ERP/WMS and other system data, exchange real-time data, and upload and update material information in a timely manner
    software Support SPC statistics in any format, automatic saving of images and results

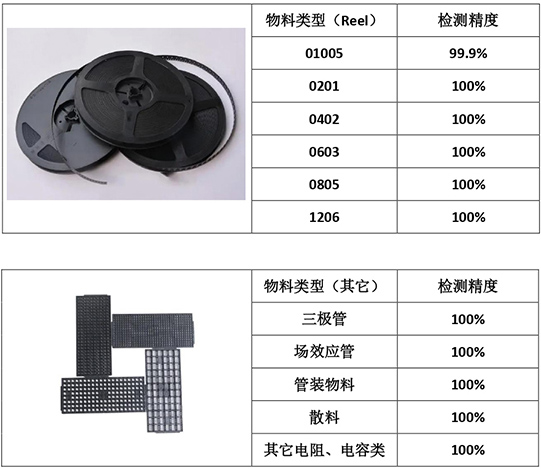

    Counting accuracy 01005 can reach 99.98%, 0201 and above 99.99%
    barcode scanning Built in camera, automatic one-dimensional and two-dimensional barcode scanner
    Counting time Approximately 12 seconds per set
    Testing items and dimensions
    Maximum size of tray 17 inches
    Minimum size of material tray 7 inches/containing smaller bulk materials
    Maximum thickness of the tray 80mm
    Minimum thickness of material tray 3mm
    Compatible with the smallest device type 1005
    Tray coverage rate Continuously updating the database to cover 99.98% of materials on the market
    Counting time Approximately 12 seconds per set
    Cutting method Automatically put into the material cart or automatically flow into the material frame
    Abnormal material storage area Abnormal materials during post test fall into the material box (automatically inserted by the robotic arm)
    Labeling method CCD vision recognizes the coordinates of the old barcode on the tray, and the robotic arm attaches the new barcode to the tray and covers the old barcode
