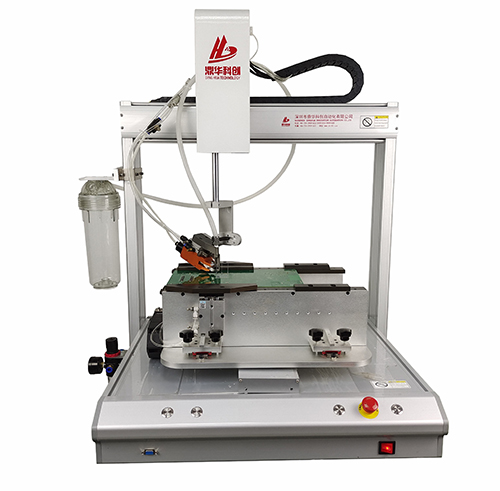

Dinghua desktop styleAutomatic foot cutting machine
DH-QJ831
1、 Product Usage:
Mainly applicable toSelective trimming of PCB boards in the PCB industry
IIFeatures:
1.Fast foot cutting speed
2.Selective foot cutting, height can be set arbitrarily
3.Z-axis can rotate 360 degrees to avoid obstacles

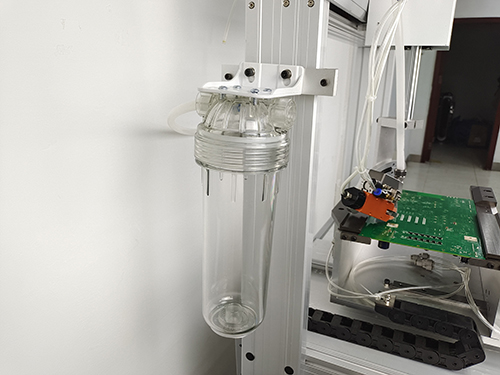

4.Vacuum suction device absorbs waste materials
5. It can store 999 sets of programming files and easily switch between different products with just one click, without the need for further programming;
6. Equipment platform dimensions can be customized according to customer needs.
3、 Specification parameters:
|
Equipment appearance |
||||||
|
model |
DH-QJ731 |
power supply |
AC 220V 50/60HZ |
|||
|
Device dimensions |
800*650*900（mm） |
gas source |
0.6～0.8Mpa |
|||
|
Equipment weight |
55KG |
power |
0.6KW |
|||
|
Travel itinerary and size range |
||||||
|
PCB size range |
minimum50 * 50mm; maximum 260 * 380mm |
PCB positioning method |
Process edge positioning |
|||
|
itinerary |
X：400 Y：400 Z:100 R：360° |
Fixture size |
Long:380； Width: 0~260 (adjustable) |
|||
|
Pin diameter |
diameter0.2~1.6mm; Material: Copper, Aluminum, Iron, Copper Aluminum Alloy |
Foot cutting method |
Pneumatic shear |
|||
|
motor system |
||||||
|
drivetransmission |
Closed loop motor, screw, synchronous belt |
Programming method |
handleArtificial teaching demonstration |
|||
|
Motion control system |
Four axis (scissor foot) motion control system |
Cutting speed |
1.5 seconds per point |
|||
|
Suction method |
Vacuum suction tube |
Cut foot height |
Single point controllable and adjustable |
|||
4Performance Description:
1. The single point programming method allows for direct input of cutting foot coordinates, and the device can perform point-to-point and block to block replication when writing work programs, reducing program writing time and making it easy to learn. The trajectory solder joints can be globally modified;
2. Simple operation teaching box, editable continuous and fast spot welding, guiding the end of the movement to reach the pin position. Set product replacement intervals, implement a cyclic welding scheme, and improve operational efficiency;
3. The device can store999 operating programs, the same machine can perform leg cutting processing on 999 different products;
4. The speed of each pin point can be independently debugged and set, and the file name can be entered in Chinese, English, and numbers;
5. Chinese interface input, easy to learn and understandWithout the need for an external teaching device, it is more convenient and easy to debug compared to similar products;
8. According to the customer's productThe pneumatic shear can be assembled according to the pin diameter and material selection;
9. You can call the trimming trajectory at any time and store multiple trimming trajectory files without the need for repeated editing;
10. Capable of computer-controlled motion, software programming, and enabling multiple operations;
